Needle Valves
RO-NV Series

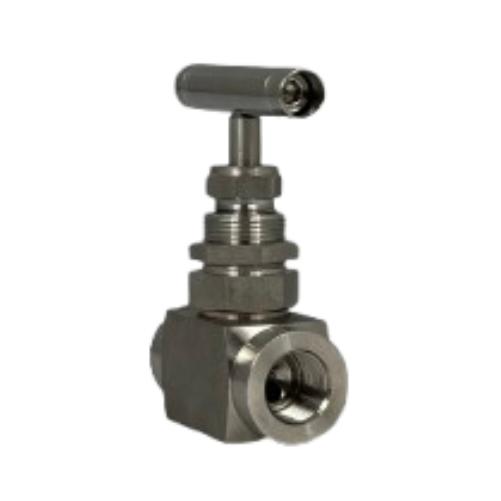

AQUA OSMOSIS NEEDLE VALVES
Aqua Osmosis stainless steel panel-mount needle valves deliver superior quality at an industry-leading value. These valves feature low operating torque for leak-tight sealing and reliable shutoff. Their precision engineering ensures accurate water flow regulation, a high flow coefficient, and minimal pressure drop. Built with a durable stainless steel stop pin and an aluminum bar handle, these valves are available in 1/2″, 3/4″, and 1″ female NPT sizes.
NEEDLE VALVE SPECIFICATIONS | ||
Part Number | Description | Quantity |
P-RO-NV12 | 1/2″ FNPT Panel Mount Needle Valve, 316 Stainless Steel | 1 |
P-RO-NV34 | 3/4″ FNPT Panel Mount Needle Valve, 316 Stainless Steel | 1 |
P-RO-NV10 | 1″ FNPT Panel Mount Needle Valve, 316 Stainless Steel | 1 |

Contact
- 2519 Weaver St.Haltom City, TX 76117
- +1 (682) 255 5431
- info@aquaosmosis.com
Brochures
Body: 316 Stainless Steel
Stem: 316 Stainless Steel
Stem Tip, Hard Seat: 316 Stainless Steel
Stem Seal: Teflon Packing
Bonnet: 316 Stainless Steel
Handle: 316 Stainless Steel
Panel Mounting Nut: 316 Stainless Steel
Operating Pressure: 6,000 PSI @200°F Maximum
