C Series

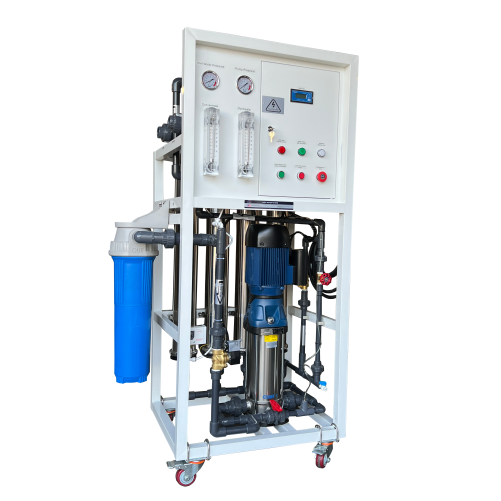

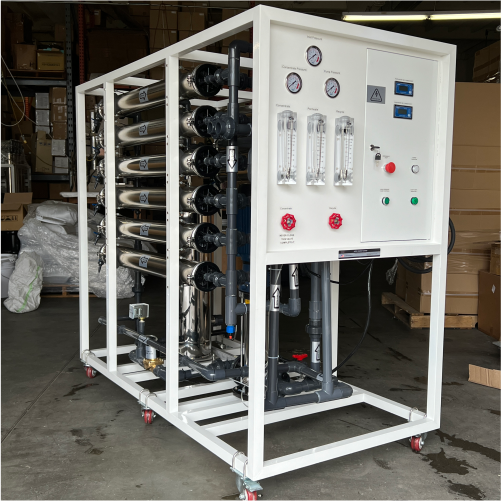

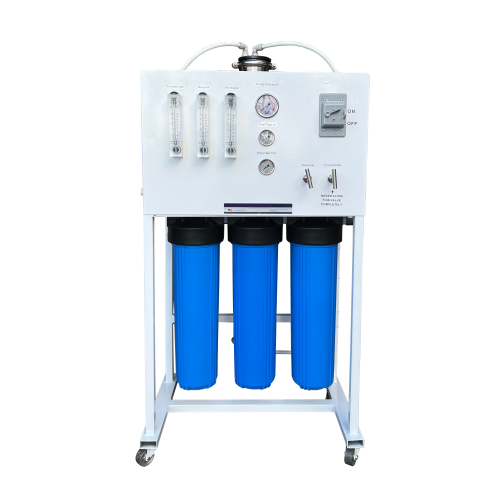

AQUA OSMOSIS C SERIES COMMERCIAL REVERSE OSMOSIS SYSTEMS
Aqua Osmosis C Series Commercial Reverse Osmosis Systems are fully assembled and meticulously tested to ensure superior performance and reliability. Designed to meet the highest industry standards, these systems are ideal for applications such as drinking water, food services, restaurants, hotels and more. Each unit is engineered for simple operation and easy installation, making it a dependable and efficient solution for your business.
*Custom designs and private labeling available.
| COMMERCIAL REVERSE OSMOSIS SYSTEMS SPECIFICATIONS | |
| Part Number | Description |
| C1000-4000 | 1,000-4,000 GPD Commercial RO System |
| C5000-10000 | 5,000-10,000 GPD Commercial RO System |
| C20000 | 20,000 GPD Commercial RO System |
| *Other capacities available upon request | |
| COMMERCIAL REVERSE OSMOSIS SYSTEMS SPECIFICATIONS | |||
| MODEL | C1000-4000 | C5000-10000 | C20000 |
| MEMBRANE | 4″ x 40″ | 4″ x 40″ | 4″ x 40″ |
| PRODUCTION (gpd) | 1,000-4,000 | 5,000-10,000 | 20,000 |
| PERMEATE (gpm) | 0.69 – 2.77 | 3.47 – 6.94 | 13.8 |
| RECOVERY RATE% | 50-75 | 50-75 | 50-75 |
| INLET PORT | 1″ FNPT | 1″ FNPT | 1.25″ FNPT |
| PERMEATE PORT | 1/2″ Tube | 3/4″ | 3/4″ |
| CONCENTRATE PORT | 1/2″ Tube | 3/4″ | 3/4″ |
| MOTOR HP | 1/2″ – 3/4″ | 1.5 – 3 | 3 |
| ELECTRICAL | 110V | 220V / 1 PH | 220V / 3 PH |
| DIMENSIONS | 25″ x 19″ x 46″ | 28″ x 22″ x 64″ | 74″ x 36″ x 63″ |
| *The system’s production rate is calculated based on a feed water quality of 1000 PPM, a water temperature of 77°F, and an SDI of less than 3. Proper pre-treatment, can extend the longevity of the membrane. Pre-treatment is required for well water and regions with hard water. | |||
Contact
- 2519 Weaver St.Haltom City, TX 76117
- +1 (682) 255 5431
- info@aquaosmosis.com
Brochures
- Membrane Housing: Stainless Steel 304
- Frame: Aluminium with Powder Coat Finish
- Pump: Rotary Vane 401 Brass Pump or Multi-Stage Pump (depending on model)
- Membrane: 4” x 40” Low Energy
- Cartridge 20”, 10 Micron Melt Blown Sediment and/or Carbon Block (depending on model)
- Solenoid Valve: Brass Body or Nylon Body
- Needle Valves: Stainless Steel 316
Maximum Feed Temperature °F (°C): 85 (29.00)
Minimum Feed Temperature °F (°C): 40 (4.44)
Maximum Feed Pressure psi (bar): 85 (5.86)
Minimum Feed Pressure psi (bar): 45 (3.10)
Maximum Operating Pressure psi (bar): 150 (10.34)
Maximum SDI Rating SDI: <3
Maximum Turbidity NTU: 1
Maximum TDS: <2000
